SCC-500 Silicon Steel Paramagnetic Radial Reactor Core Cutting Line

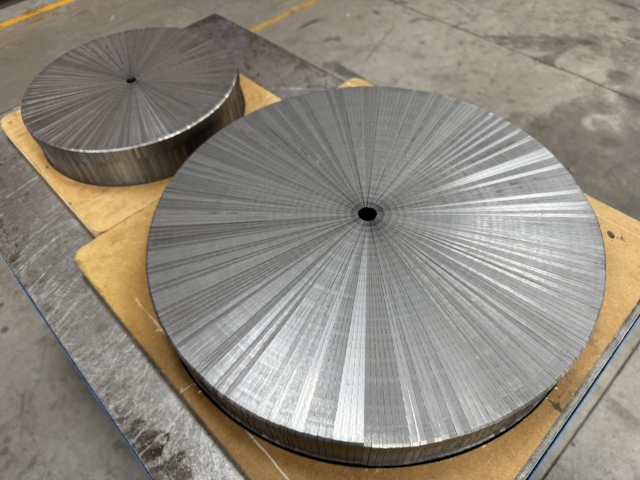

  • Produce paramagnetic radial reactor core.
  • Automatic feeding, guiding, punching, cutting, and auto-stacking with high efficiency.

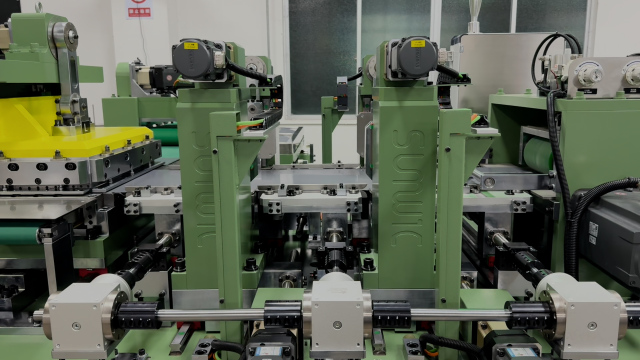

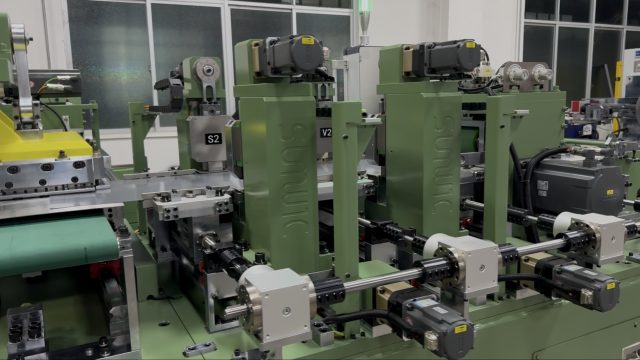

  • Two V-notch punch units setup.
  • Two notch punch units setup.
  • Cutting function software can be added or modified as required.

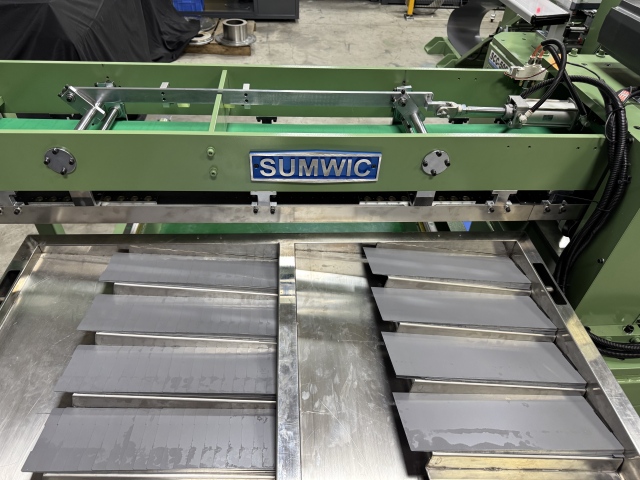

  • Single layer front back stacking.
  • Easy to install without groundwork and foundation pit.
  • Fully electric operations, low noise level and energy conservation.
  • Siemens (Germany) SlMATlC motion controller and SlMOTlCS servo motors.
Learn More
  • SCC-500 Silicon Steel Paramagnetic Radial Reactor Core Cutting Line
  • SCC-500 Silicon Steel Paramagnetic Radial Reactor Core Cutting Line
  • SCC-500 Silicon Steel Paramagnetic Radial Reactor Core Cutting Line
  • SCC-500 Silicon Steel Paramagnetic Radial Reactor Core Cutting Line
  • SCC-500 Silicon Steel Paramagnetic Radial Reactor Core Cutting Line
  • SCC-500 Silicon Steel Paramagnetic Radial Reactor Core Cutting Line

Technical Specifications


Model SCC-500
Material Width 50-500mm
Cutting Length (End to End) 80-300mm
Material Thickness 0.18-0.35mm
Max. Feeding Speed 200m/min
L-Shape Cutter 1 Set
V-Notch Punch Units 2 Sets
Notch Punch Units 2 Sets
L-Shape Cutter Movements 0-520mm
V-Notch Punch Depth 0-15mm
Notch Punch Depth 0-15mm
Controller SIEMENS SIMATIC S7-1500T
Servo System SIEMENS SIMOTICS SERVO MOTOR
Pneumatic Components SMC


Decoiler (Single Head with Hydraulic Expansion)
Max. Material OD 1200mm
Expansion Range 495-508mm (Standard)
Max. Loading 2000kg


Automatic Stacker
Stacking Type Single Layer Front and Back

*Above specifications can be customized according to your requirements.
